Product Title：FU405C20-BD12 Cross hair Line Blue Violet cross line Laser Module 405nm 3-5VDC 12*40mm <20mW
FU405C20-BD12 Cross hair Line Blue Violet cross line Laser Module 405nm 3-5VDC 12*40mm <20mW
Cross Line specification：
Wavelength(nM): 405±10
Output Power (mW): <20
Operaing Voltage(VDC): 3-5

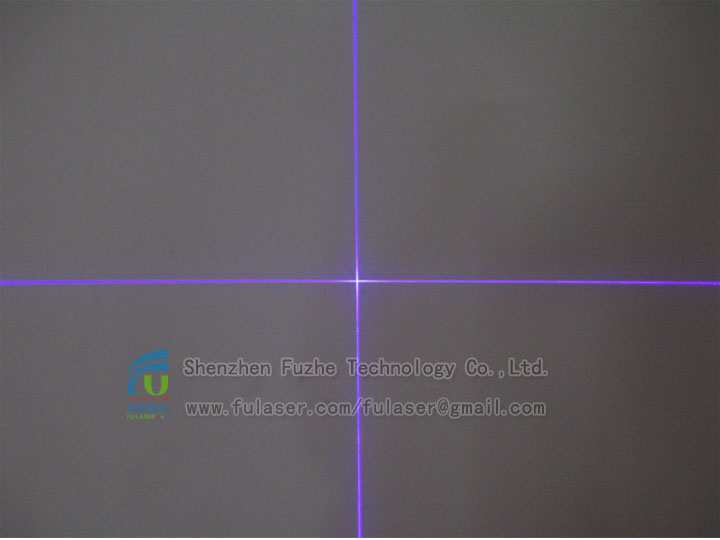

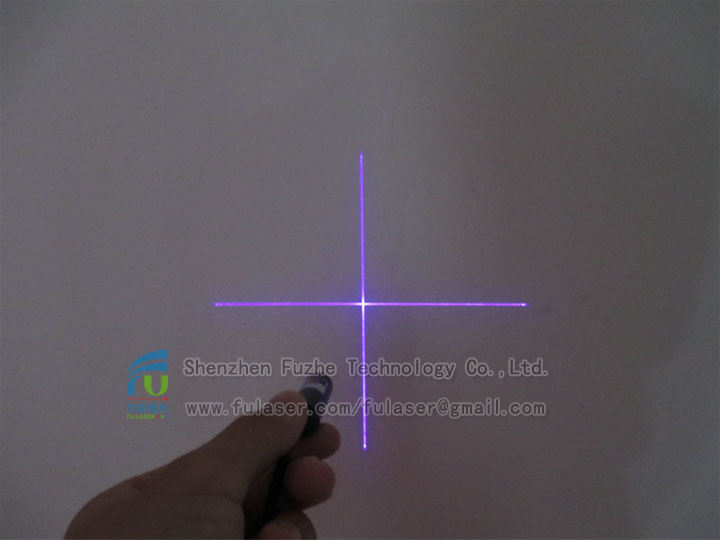

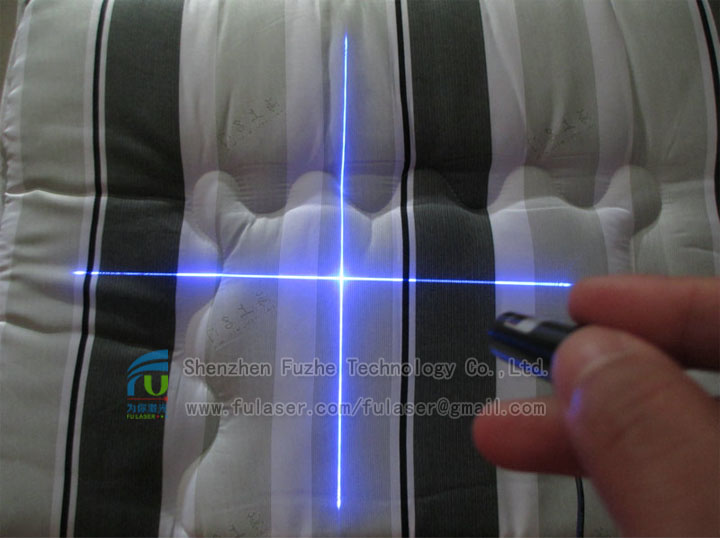

Projection Type : Cross hair Line
Beam focus: Fixed
Projection Fan Angle(°, full angle) : 60
Divergence (mrad, full angle): <2
Transverse Mode : Near TEM00
Operating Temperature Range (°C): -10 to +40
Storage Temperature Range (°C): -20 to +50
Total Power Consumption (W) 1
Cooling Method : Passive air
Cable length(cm): <100
Standard Warranty (months): 6
Laser Head Dimensions (mm): 40(L) x 12(D)
------------------
Package Includes:
Laser module -1 piece
Power supply- 1 piece
Tripod(Bracket/Mount)- 1 piece
More lasr products or service(OEM/ODM),please contact us.
FU-Lasers for you!
FU405C20-BD12 Cross hair Line Blue Violet cross line Laser Module 405nm 3-5VDC 12*40mm
