More customized diode laser modules with different wavelengths and power options are available additionally to the standard types.

Brand: FU

Model: FU402AX850-GD16



Dot Model: FU402AD850-GD16(dot)

Projection Type : Dot/Point

Beam focus: Adjustable

---------------------------------------------------

Line Model: FU402AL850-GD16(line)

Projection Type : Line

Projection Fan angle (°, full angle): <110

---------------------------------------------------

Cross hair Line Model: FU402AC850-GD16(crosshair)

Projection Type : Cross hair Line

Projection Fan angle (°, full angle): <110

---------------------------------------------------

Different model but in same parameter:

Wavelength(nM): 402±10

Output Power (mW): <850

Operating Voltage(VDC): 3-5(<=100mW) or 9-24(>100mW)

Operating Temperature Range (°C): -10 to +40

Storage Temperature Range (°C): -20 to +50

Cooling Method : Passive air+Heat sink

Laser Head Dimensions (mm): 70(L) x 16(D)

---------------------------------------------------------------

Package Includes:

Laser module -1 piece

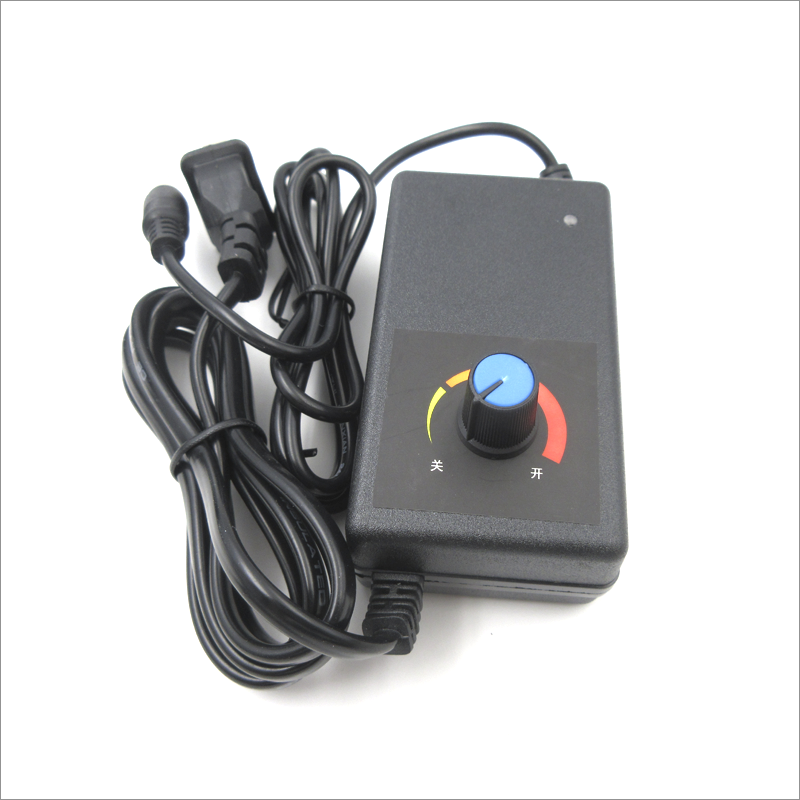

Power supply- 1 piece

Tripod(Bracket/Mount)- 1 piece
