Product Title：FU405AX20-GD1250 FU405AD20-GD1250(dot) FU405AL20-GD1250(line) FU405AC20-GD1250(crosshair) blue violet 405nm 20mW dot/line/crosshair line laser light source with adjustable focus 12*50mm diode lazer module lamp
More customized diode laser modules with different wavelengths and power options are available additionally to the standard types.
Brand: FU
Dot Model: FU405AD20-GD1250(dot)
Projection Type : Dot/Point
---------------------------------------------------
Line Model: FU405AL20-GD1250(line)
Projection Type : Line
Projection Fan angle (°, full angle): <110
---------------------------------------------------
Cross hair Line Model: FU405AC20-GD1250(crosshair)
Projection Type : Cross hair Line
Projection Fan angle (°, full angle): <110
---------------------------------------------------
Different model but in same parameter:
Wavelength(nM): 405±10
Output Power (mW): <20
Operating Voltage(VDC): 2.8-5.2
Beam focus: Adjustable
Divergence (mrad, full angle): <2
Transverse Mode : Near TEM00
Operating Temperature Range (°C): -10 to +40
Storage Temperature Range (°C): -20 to +50
Total Power Consumption (W) 1
Cooling Method : Passive air+Heat sink
Cable length(cm): <100
Standard Warranty (months): 6

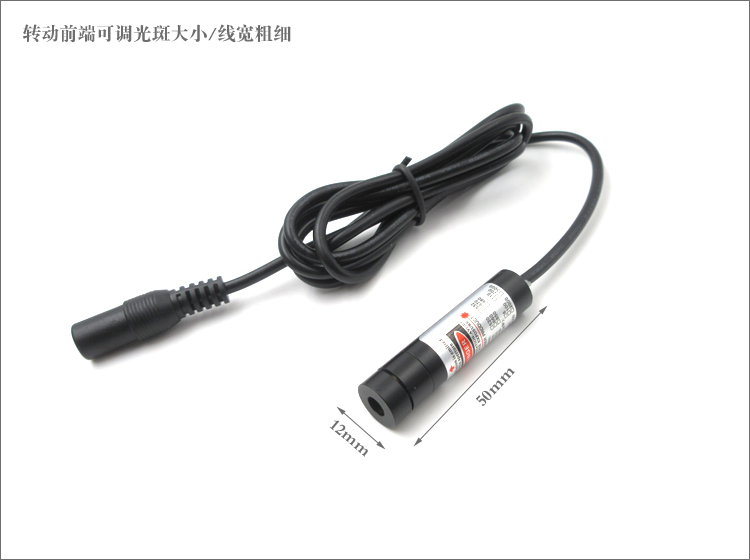

Laser Head Dimensions (mm): 50(L) x 12(D)
---------------------------------------------------------------

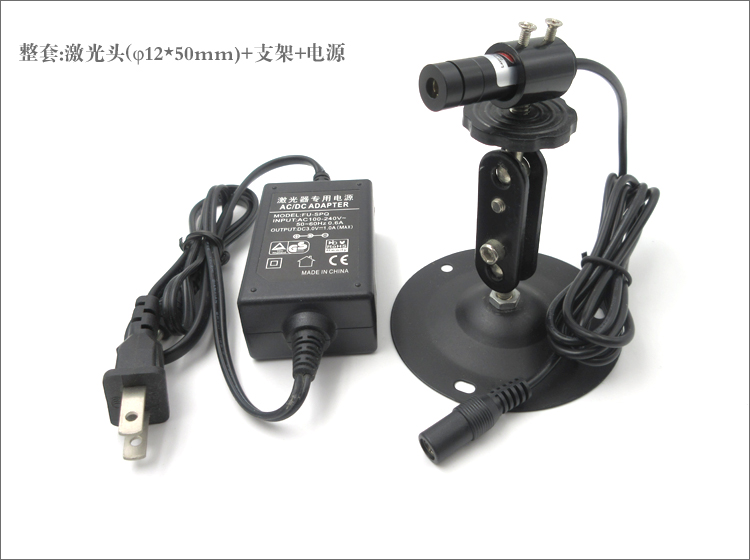

Package Includes:
Laser module -1 piece
Power supply- 1 piece
Tripod(Bracket/Mount)- 1 piece
FU405AD20-GD1250(dot) FU405AL20-GD1250(line) FU405AC20-GD1250(crosshair) blue violet 405nm 20mW dot/line/crosshair line laser light source with adjustable focus 12*50mm diode lazer module lamp
