Note: Different model have different wavelength and output power
| Model |
FU442AD1000-F100 442nm 1000mW |
| Wavelength | See above |
| Spatial Mode | Near TEM00 |
| Output Power | See above |
| Operation Mode | CW or Modulation |
| Beam Height | 29mm |
| Beam Size | 4.5*4mm |
| Beam Divergence(full angle) | 1.2*0.5mrad |
| Power Stability | <3% per 4 hours |
| Temperature Stabilizing | TEC |
| Warm Up Time | <1 minute |
| MTTF | 10,000 hours |
| Laser Head Dimension | 114*44*65mm3 L*W*H |

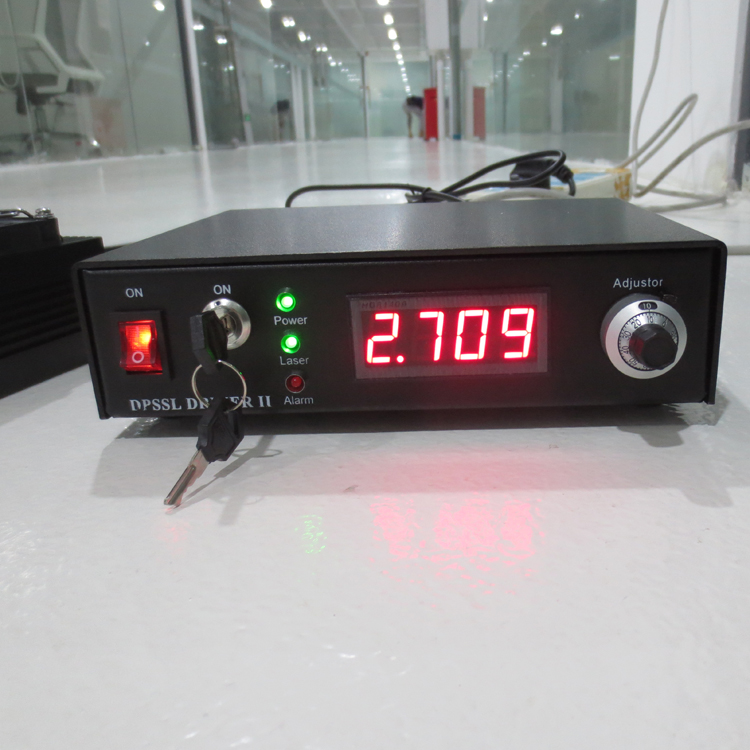

| Power Supply | 179*148*56mm3 L*W*H 85-265VAC 50/60Hz input |

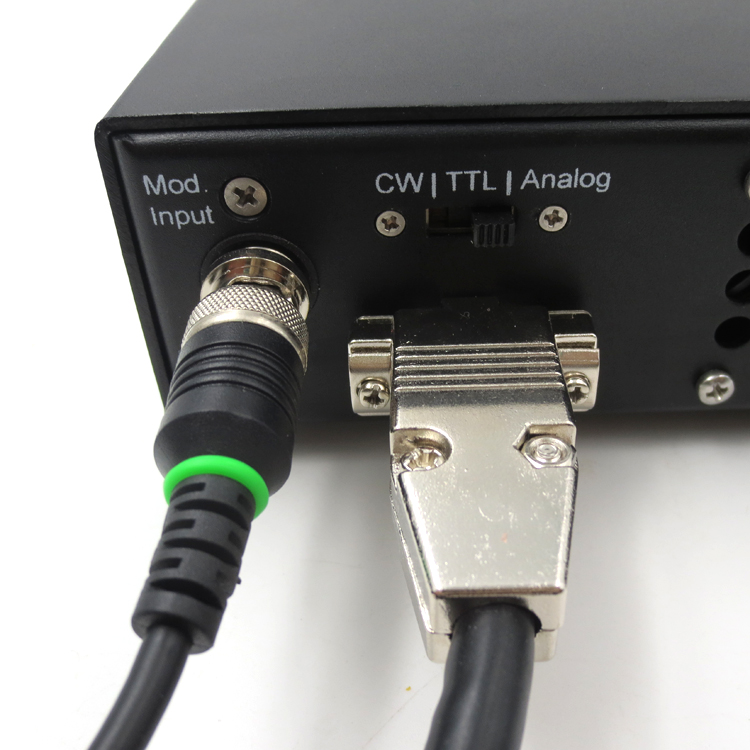

| Modulation | 0~30KHz Analog or TTL |
FU442AD1000-F100/FU442AD2000-F100/FU442AD4000-F100/FU450AD1500-F100/FU450AD3000-F100/FU450AD6000-F100/FU450AD12000-F100/FU465AD1500-F100/FU465AD5000-F100/FU470AD2000-F100/FU470AD8000-F100/FU473AD50-F100/FU473AD150-F100/FU473AD300-F100/FU473AD500-F100 442nm/450nm/465nm/470nm/473nm 50mW~12000mW blue laser diode module CW/TTL 30KHz <3% power stability TEM00 TEC big dimension
