More customized diode laser modules with different wavelengths and power options are available additionally to the standard types.



Brand: FU

Model: FU405AC400-GD1673, FU450AC5000-GD1673, FU488AC60-GD1673

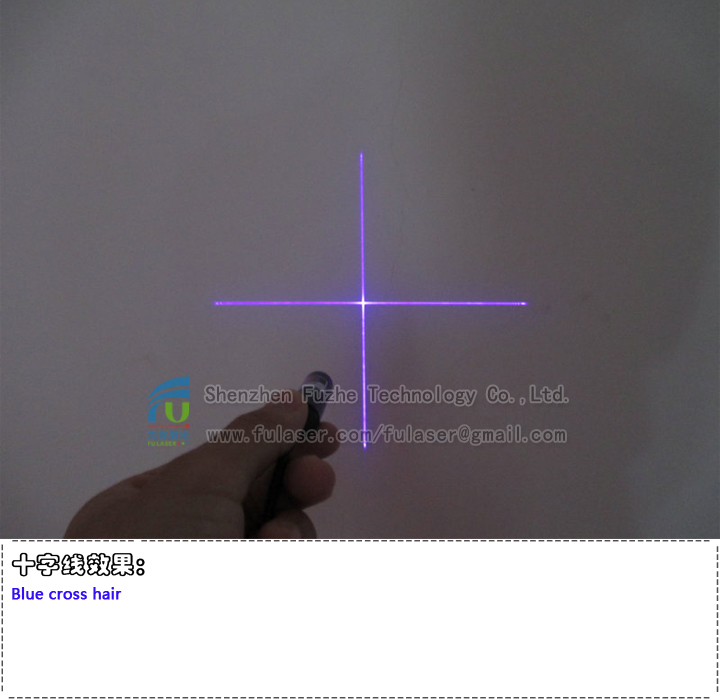

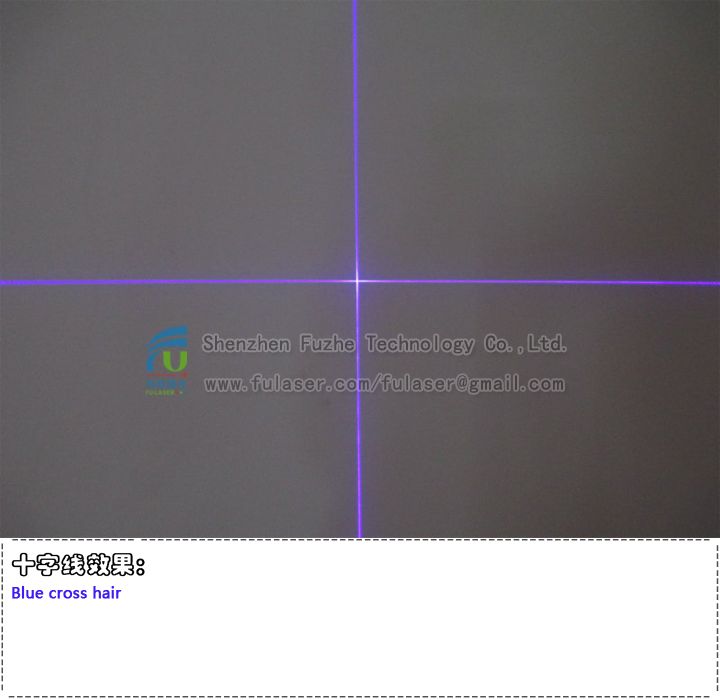

Projection Type : Cross hair Line

Projection Fan angle (°, full angle): <110

Line lens: two glass cylindrical lens



Wavelength(nM) and output power: 405±10nm(0-400mW), 450±10nm(0-5000mW), 488±10nm(0-60mW)

Operating Voltage(VDC): 3-5(<=100mW) or 9-24(>100mW)

Operating Temperature Range (°C): -10 to +40

Storage Temperature Range (°C): -20 to +50

Laser Head Dimensions (mm): 73(L) x16(D)

---------------------------------------------------------------

Package Includes:

Laser module -1 piece

Power supply- 1 piece

Tripod(Bracket/Mount)- 1 piece





405nm following:



450nm following:





488nm following
