Product Title：FU465AD4500-GD22(dot) FU465AL4500-GD22(line) FU4650AC4500-GD22(crosshair) 465nm 4500mw blue point laser light source with adjustable focus 22*110mm line crosshair line diode lazer module lamp
More customized diode laser modules with different wavelengths and power options are available additionally to the standard types.
Brand: FU

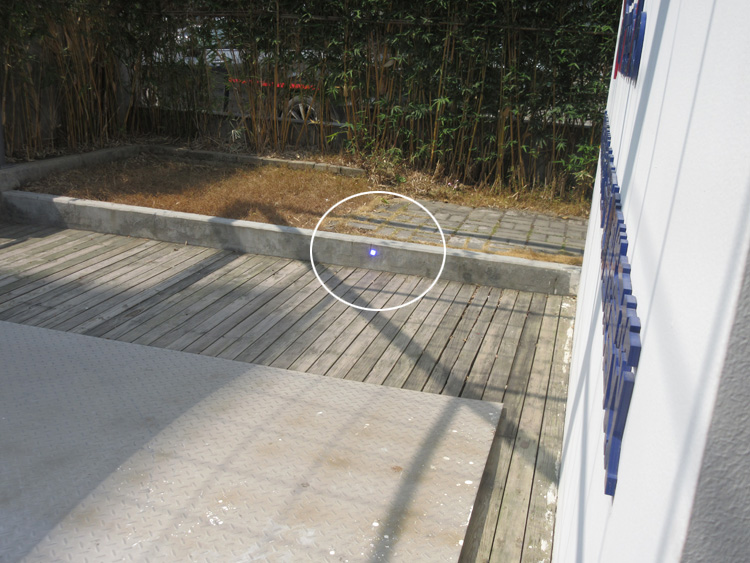

Dot Model: FU465AD4500-GD22(dot)
Projection Type : Dot/Point
---------------------------------------------------

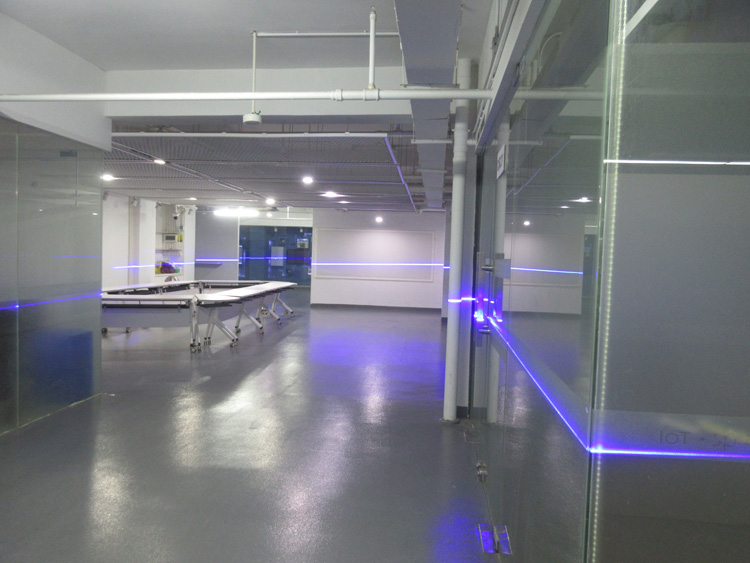

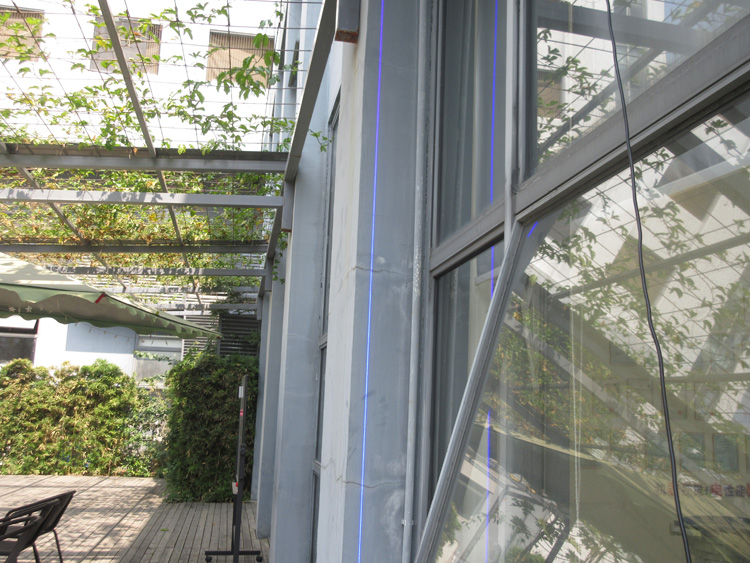

Line Model: FU465AL4500-GD22(line)
Projection Type : Line
Projection Fan angle (°, full angle):<110<>
---------------------------------------------------
Cross hair Line Model: FU465AC4500-GD22(crosshair)
Projection Type : Cross hair Line
Projection Fan angle (°, full angle):<110<>
---------------------------------------------------
Different model but in same parameter:
Wavelength(nM): 465±10
Output Power (mW):<4500<>
Operating Voltage(VDC): 9-25
Beam focus: Adjustable
Operating Temperature Range (°C): -10 to +40
Storage Temperature Range (°C): -20 to +50
Cooling Method : Passive air+Heat sink
Cable length(cm):<100<>
Standard Warranty (months): 6
Laser Head Dimensions (mm): 110(L) x 22(D)
---------------------------------------------------------------
Package Includes:
Laser module -1 piece
Power supply- 1 piece
