Product Title：FU450AX500-GD16 FU450AD500-GD16(DOT) FU450AL500-GD16(LINE) FU450AC500-GD16(CROSS) adjustable focus 440nm-460nm 450nm 500mW blue spot point laser diode module light, blue line, blue cross hair line lazer lamp 6-25VDC

More customized diode laser modules with different wavelengths and power options are available additionally to the standard types.

Brand: FU(For You)

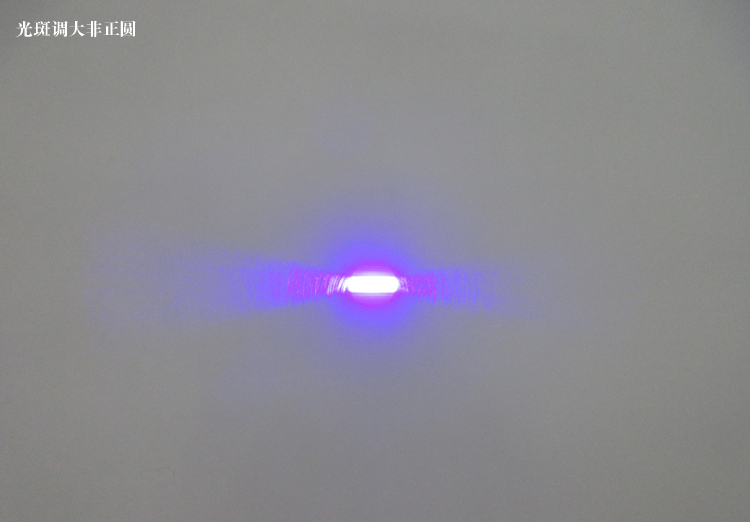

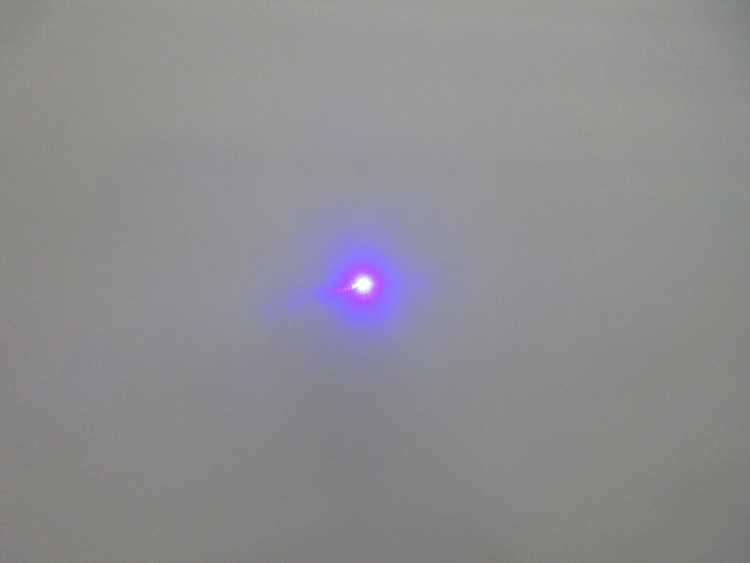

Model: FU450AD500-GD16(DOT)
Projection Type : Dot/spot/point

----------------------------------------------------

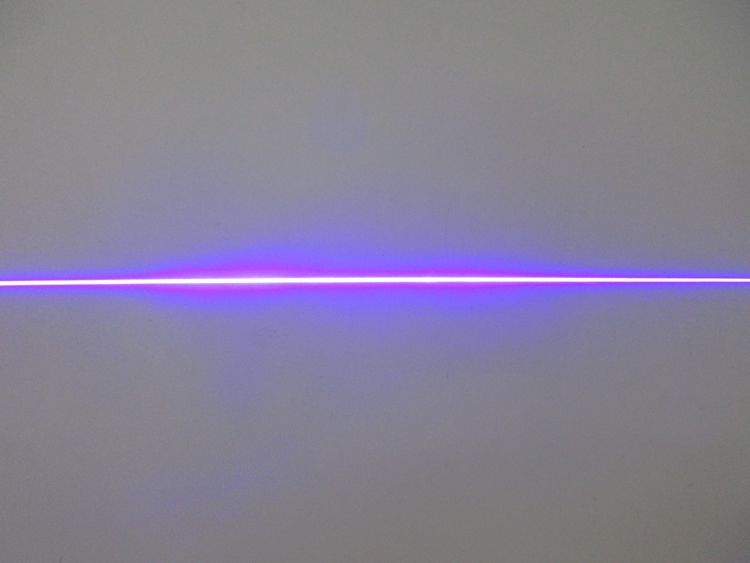

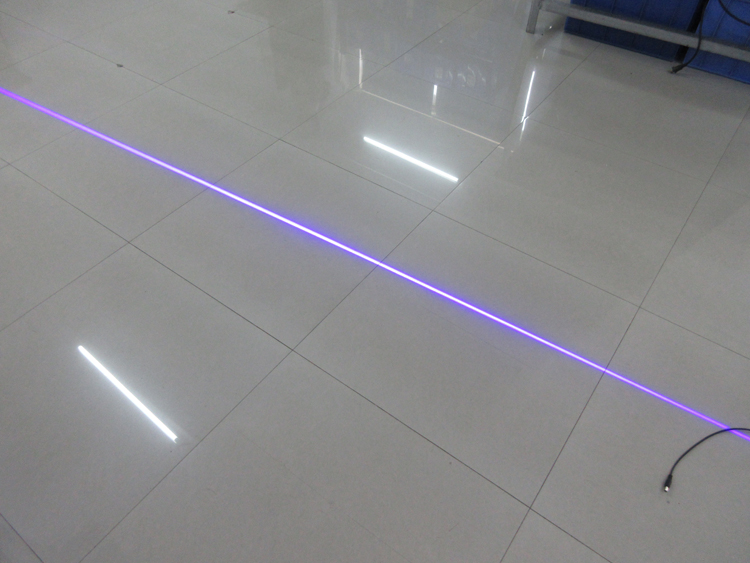

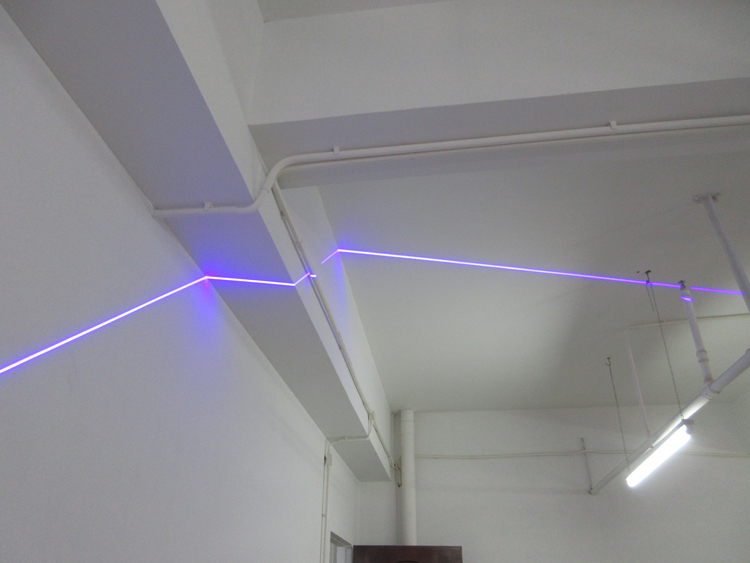

Model: FU450AL500-GD16(LINE)

Projection Type : Line

Projection Fan angle (°, full angle): <110

----------------------------------------------------

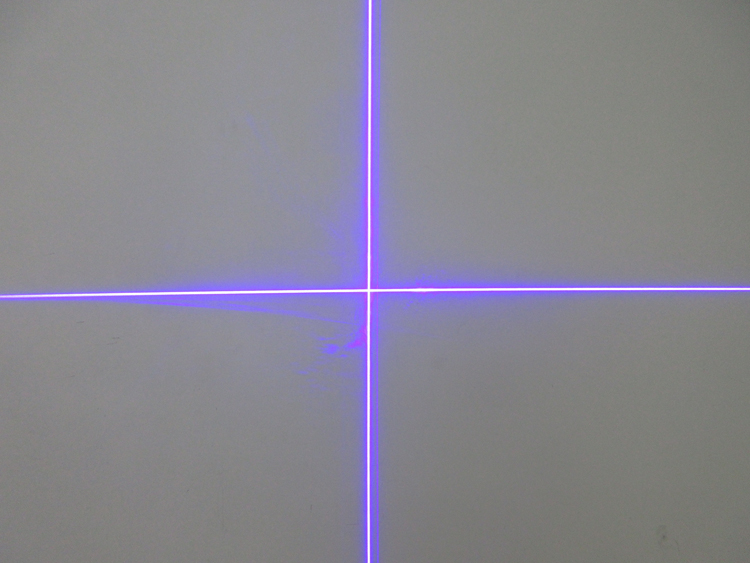

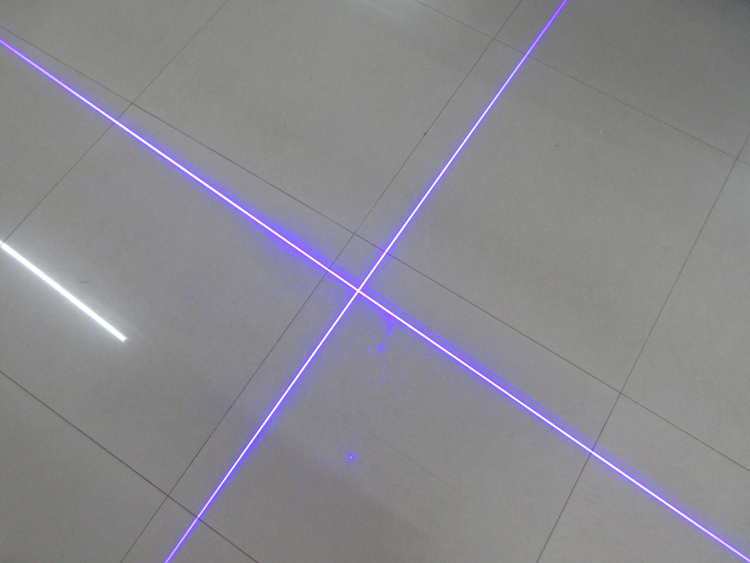

Model: FU450AC500-GD16(CROSS)

Projection Type : Cross hair Line

Projection Fan angle (°, full angle): <110

---------------------------------------------------

Different model but in same parameter:

Wavelength(nM): 450±10

Output Power (mW): <500

Operating Voltage(VDC): 6-25

Beam focus: Adjustable

Divergence (mrad, full angle): <2

Transverse Mode : Near TEM00

Operating Temperature Range (°C): -10 to +40

Storage Temperature Range (°C): -20 to +50

Total Power Consumption (W) 1

Cooling Method : Passive air+Extra heat sink

Cable length(cm): <100

Standard Warranty (months): 6

Laser Head Dimensions (mm): 70(L) x 16(D)

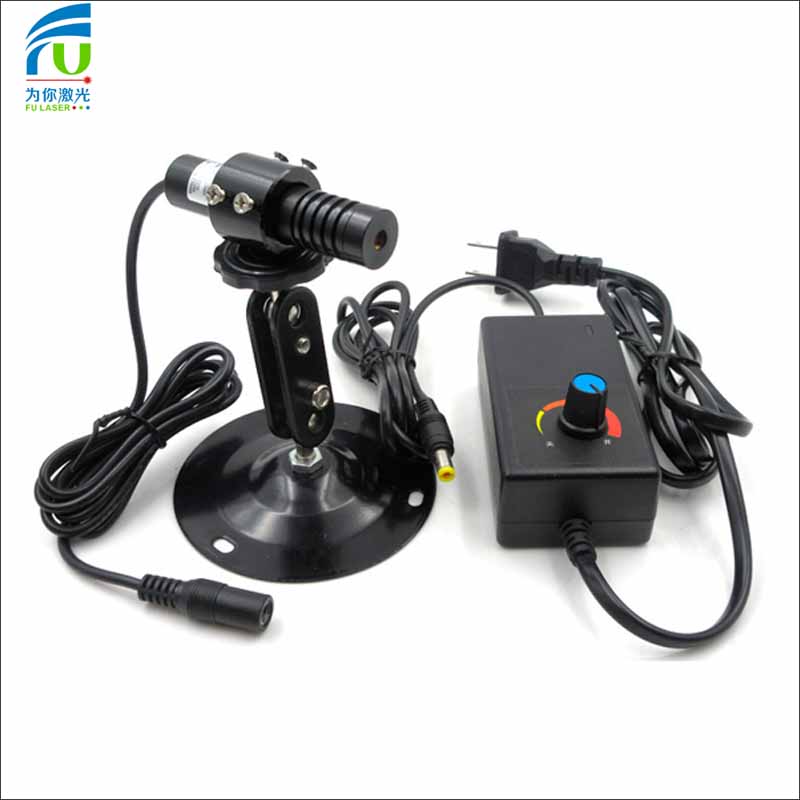

Package Includes:

Laser module -1 piece

Power supply 1-12VDC- 1 piece

Tripod(Bracket/Mount)- 1 piece
