Line specification:
Wavelength(nM): 635±10
Output Power (mW): <50
Operating Voltage(VDC): 3

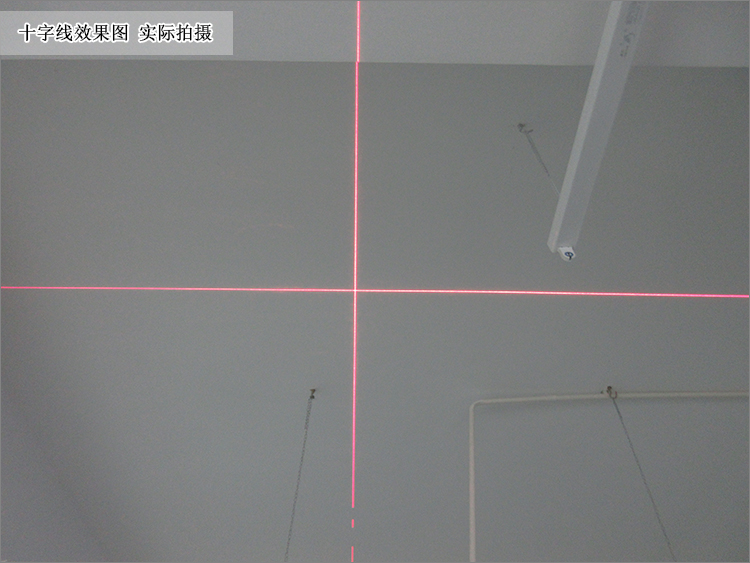

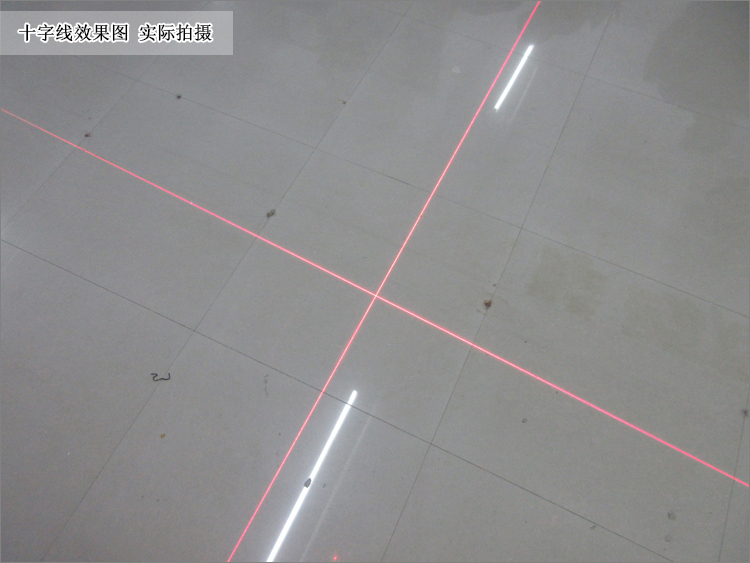

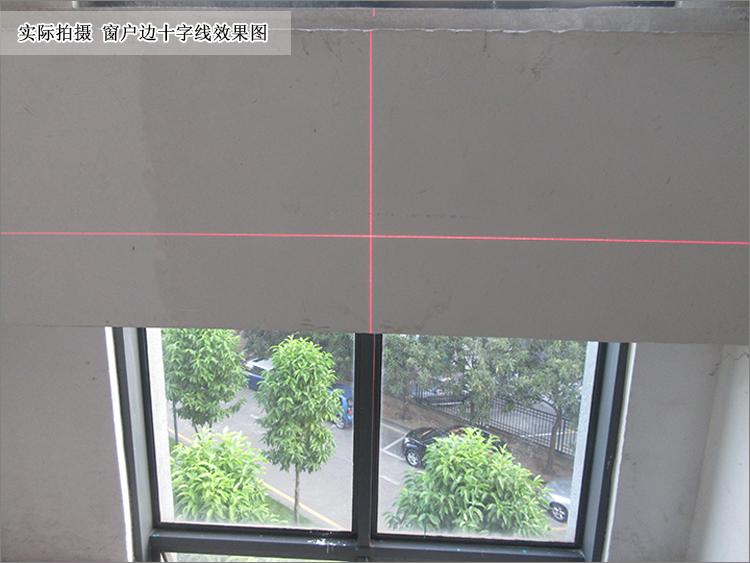

Projection Type : Cross Line
Beam focus: Fixed
Projection Fan Angle(°, full angle) : 110
Divergence (mrad, full angle): <2
Transverse Mode : Near TEM00
Operating Temperature Range (°C): -10 to +40
Storage Temperature Range (°C): -20 to +50
Total Power Consumption (W) 1
Cooling Method : Passive air+Heat sink

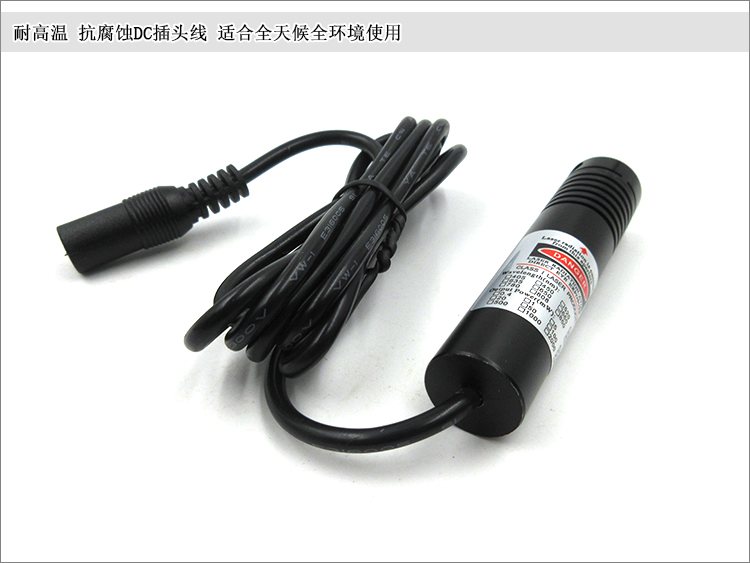

Cable length(cm): <100
Standard Warranty (months): 6

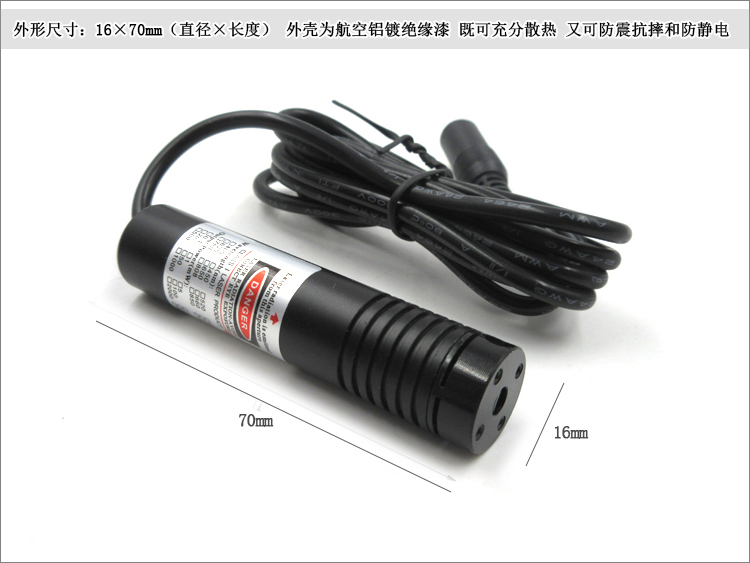

Laser Head Dimensions (mm): 70(L) x 16(D)
