We can provide so many kinds of laser diode, 405nm~1064nm with different output power at following form.
It is better to use a driver PCB to match for them.
If you need price, specification or some other laser diodes, please contact us.
***Noted: TO18(φ5.6*10), TO5(φ9*14mm), TO38(φ3.8*10)***
| Color | Wavelength | Power | Package φ(mm) |
PIN Type | Operting Temperature(℃) |
RMB Unit Price |
USD Unit Price |
| 405nm | 5mW | 5.6*10 | LD/PD anode | -10~40 | ￥20.00 | $3.08 | |
| 405nm | 20mW | 5.6*10 | LD/PD anode | -10~40 | ￥35.00 | $5.38 | |
| 405nm | 50mW | 5.6*10 | LD anode, no PD | -10~40 | ￥50.00 | $7.69 | |
| 405nm | 120mW | 5.6*10 | LD anode, no PD | -10~40 | ￥100.00 | $15.38 | |
| 405nm | 150mW | 3.8*10 | LD only, case isolated | -10~40 | ￥150.00 | $23.08 | |
| 405nm | 150mW | 5.6*10 | LD only, case isolated | -10~40 | ￥285.00 | $43.85 | |
| 405nm | 350mW | 5.6*10 | LD only, 2pin | -10~50 | ￥600.00 | $92.31 | |
| 450nm | 80mW | 3.8*10 | LD only, case isolated | -10~40 | ￥200.00 | $30.77 | |
| 450nm | 100mW | 5.6*10 | LD only, case isolated | -10~40 | ￥285.00 | $43.85 | |
| 450nm | 1600mW | 5.6*10 | LD only, case isolated | 0~70 | ￥800.00 | $123.08 | |
| 450nm | 3500mW | 9*10 | LD only, 2pin | 0~60 | ￥2,800.00 | $430.77 | |
| 455nm | 4750mW | 9*10 | LD only, 2pin | 0~70 | ￥3,000.00 | $461.54 | |
| 487nm | 55mW | 5.6*10 | LD only, case isolated | -10~40 | ￥600.00 | $92.31 | |
| 515nm | 10mW | 5.6*10 | LD cathode, PD anode | -20~60 | ￥130.00 | $20.00 | |
| 515nm | 30mW | 3.8*10 | LD only, case isolated | -20~60 | ￥260.00 | $40.00 | |
| 515nm | 30mW | 5.6*10 | LD only, case isolated | -20~60 | ￥260.00 | $40.00 | |
| 520nm | 50mW | 5.6*10 | LD cathode, PD anode | -20~60 | ￥320.00 | $49.23 | |
| 520nm | 50mW | 3.8*10 | LD only, case isolated | -20~60 | ￥320.00 | $49.23 | |
| 520nm | 80mW | 3.8*10 | LD only, case isolated | -20~60 | ￥500.00 | $76.92 | |
| 520nm | 135mW | 5.6*10 | LD only, case isolated | -10~60 | ￥550.00 | $84.62 | |
| 520nm | 1000mW | 9*10 | LD only, 2pin | 0~60 | ￥2,800.00 | $430.77 | |
| 635nm | 5mW | 5.6*10 | LD cathode, PD anode | -10~40 | ￥15.00 | $2.31 | |
| 635nm | 5mW | 5.6*10 | LD cathode, PD anode | -10~50 | ￥35.00 | $5.38 | |
| 635nm | 5mW | 5.6*10 | LD anode, PD cathode | -10~40 | ￥55.00 | $8.46 | |
| 635nm | 5mW | 3.8*10 | LD cathode, PD anode | -10~40 | ￥30.00 | $4.62 | |
| 635nm | 10mW | 5.6*10 | LD cathode, PD anode | -10~40 | ￥50.00 | $7.69 | |
| 635nm | 10mW | 5.6*10 | LD cathode, PD anode | -10~50 | ￥80.00 | $12.31 | |
| 635nm | 20mW | 5.6*10 | LD cathode, PD anode | -10~40 | ￥100.00 | $15.38 | |
| 635nm | 30mW | 5.6*10 | LD cathode, case anode, no PD | -10~40 | ￥120.00 | $18.46 | |
| 635nm | 500mW | 5.6*10 | LD only, case isolated | -10~40 | ￥1,000.00 | $153.85 | |
| 637nm | 1200mW | 9*11 | LD only, 2pin | -10~45 | ￥1,500.00 | $230.77 | |
| 638nm | 15mW | 5.6*10 | LD anode, PD cathode | -10~50 | ￥120.00 | $18.46 | |
| 638nm | 120mW | 5.6*10 | LD only, case isolated | -10~40 | ￥220.00 | $33.85 | |
| 638nm | 700mW | 5.6*10 | LD only, case isolated | -10~40 | ￥1,200.00 | $184.62 | |
| 650nm | 5mW | 5.6*10 | LD cathode, PD anode | -10~40 | ￥10.00 | $1.54 | |
| 650nm | 5mW | 5.6*10 | LD cathode, PD anode | -10~70 | ￥30.00 | $4.62 | |
| 650nm | 5mW | 3.3*8.27 | LD cathode, PD anode | -10~40 | ￥30.00 | $4.62 | |
| 650nm | 5mW | 3.8*10 | LD cathode, PD anode | -10~40 | ￥15.00 | $2.31 | |
| 650nm | 5mW | 5.6*10 | LD anode, PD cathode | -10~50 | ￥45.00 | $6.92 | |
| 650nm | 10mW | 5.6*10 | LD cathode, PD anode | -10~40 | ￥20.00 | $3.08 | |
| 650nm | 10mW | 5.6*10 | LD cathode, PD anode | -10~70 | ￥60.00 | $9.23 | |
| 650nm | 10mW | 3.3*8.27 | LD cathode, PD anode | -10~70 | ￥60.00 | $9.23 | |
| 650nm | 10mW | 5.6*10 | LD anode, PD cathode | -10~60 | ￥80.00 | $12.31 | |
| 650nm | 20mW | 5.6*10 | LD cathode, PD anode | -10~40 | ￥30.00 | $4.62 | |
| 650nm | 30mW | 5.6*10 | LD cathode, PD anode | -10~40 | ￥40.00 | $6.15 | |
| 650nm | 30mW | 5.6*10 | LD cathode, PD anode | -10~70 | ￥150.00 | $23.08 | |
| 650nm | 30mW | 5.6*10 | LD anode, PD cathode | -10~70 | ￥180.00 | $27.69 | |
| 650nm | 50mW | 5.6*10 | LD cathode, case anode, no PD | -10~40 | ￥50.00 | $7.69 | |
| 650nm | 50mW | 5.6*10 | LD cathode, PD anode | -10~40 | ￥150.00 | $23.08 | |
| 650nm | 50mW | 5.6*10 | LD cathode, PD anode | -10~75 | ￥180.00 | $27.69 | |
| 650nm | 50mW | 5.6*10 | LD anode, PD cathode | -10~70 | ￥260.00 | $40.00 | |
| 658nm | 80mW | 5.6*10 | LD anode, case cathode,no PD | -10~40 | ￥55.00 | $8.46 | |
| 658nm | 100mW | 5.6*10 | LD anode, case cathode,no PD | -10~40 | ￥60.00 | $9.23 | |
| 660nm | 200mW | 5.6*10 | LD anode, case cathode,no PD | -10~40 | ￥80.00 | $12.31 | |
| 670nm | 5mW | 5.6*10 | LD cathode, PD anode | -10~40 | ￥20.00 | $3.08 | |
| 670nm | 10mW | 5.6*10 | LD cathode, PD anode | -10~40 | ￥120.00 | $18.46 | |
| 680nm | 9mW | 5.6*10 | LD cathode, PD anode | -10~60 | ￥150.00 | $23.08 | |
| 685nm | 35mW | 5.6*10 | LD only, case isolated | -10~40 | ￥100.00 | $15.38 | |
| 685nm | 50mW | 5.6*10 | LD only, case isolated | -10~60 | ￥600.00 | $92.31 | |
| 690nm | 35mW | 5.6*10 | LD anode, PD cathode | -10~40 | ￥500.00 | $76.92 | |
| 780nm | 5mW | 5.6*10 | LD cathode, PD anode | -10~40 | ￥10.00 | $1.54 | |
| 780nm | 5mW | 3.8*10 | LD cathode, PD anode | -10~40 | ￥60.00 | $9.23 | |
| 780nm | 10mW | 5.6*10 | LD cathode, PD anode | -10~40 | ￥40.00 | $6.15 | |
| 780nm | 10mW | 3.8*10 | LD cathode, PD anode | -10~40 | ￥100.00 | $15.38 | |
| 780nm | 50mW | 5.6*10 | LD anode, case cathode,no PD | -10~40 | ￥60.00 | $9.23 | |
| 780nm | 100mW | 5.6*10 | LD anode, case cathode,no PD | -10~40 | ￥80.00 | $12.31 | |
| 780nm | 150mW | 5.6*10 | LD anode, case cathode,no PD | -10~40 | ￥120.00 | $18.46 | |
| 780nm | 200mW | 5.6*10 | LD anode, case cathode,no PD | -10~40 | ￥130.00 | $20.00 | |
| 790nm | 35mW | 5.6*10 | LD anode, PD anode | -10~60 | ￥120.00 | $18.46 | |
| 808nm | 50mW | 5.6*10 | LD cathode, PD anode | -10~40 | ￥90.00 | $13.85 | |
| 808nm | 100mW | 5.6*10 | LD cathode, case anode, no PD | -10~40 | ￥100.00 | $15.38 | |
| 808nm | 200mW | 5.6*10 | LD cathode, case anode, no PD | -10~40 | ￥20.00 | $3.08 | |
| 808nm | 200mW | 5.6*10 | LD cathode, case anode, no PD | -10~40 | ￥100.00 | $15.38 | |
| 808nm | 300mW | 5.6*10 | LD cathode, case anode, no PD | -10~40 | ￥30.00 | $4.62 | |
| 808nm | 500mW | 5.6*10 | LD cathode, case anode, no PD | -10~40 | ￥100.00 | $15.38 | |
| 808nm | 500mW | 9*14 | LD cathode, case anode, no PD | -10~40 | ￥100.00 | $15.38 | |
| 808nm | 1000mW | 9*14 | LD cathode, case anode, no PD | -10~40 | ￥350.00 | $53.85 | |
| 820nm | 200mW | 5.6*10 | LD anode, PD anode | -10~70 | ￥50.00 | $7.69 | |
| 830nm | 5mW | 5.6*10 | LD cathode, PD anode | -10~40 | ￥90.00 | $13.85 | |
| 830nm | 20mW | 5.6*10 | LD cathode, PD anode | -10~40 | ￥100.00 | $15.38 | |
| 830nm | 50mW | 5.6*10 | LD cathode, PD anode | -10~40 | ￥120.00 | $18.46 | |
| 830nm | 100mW | 5.6*10 | LD cathode, PD anode | -10~40 | ￥200.00 | $30.77 | |
| 830nm | 200mW | 5.6*10 | LD cathode, PD anode | -10~40 | ￥260.00 | $40.00 | |
| 845nm | 450mW | 5.6*10 | LD cathode, case anode, no PD | -10~60 | ￥360.00 | $55.38 | |
| 850nm | 5mW | 5.6*10 | LD cathode, PD anode | -10~40 | ￥40.00 | $6.15 | |
| 850nm | 5mW | 3.8*10 | LD cathode, PD anode | -10~40 | ￥120.00 | $18.46 | |
| 850nm | 5mW | 5.6*10 | LD anode, PD cathode | -10~60 | ￥160.00 | $24.62 | |
| 850nm | 10mW | 5.6*10 | LD cathode, PD anode | -10~40 | ￥70.00 | $10.77 | |
| 850nm | 20mW | 5.6*10 | LD cathode, PD anode | -10~40 | ￥160.00 | $24.62 | |
| 850nm | 40mW | 5.6*10 | LD cathode, PD anode | -10~40 | ￥200.00 | $30.77 | |
| 850nm | 40mW | 5.6*10 | LD anode, PD cathode | -10~40 | ￥280.00 | $43.08 | |
| 850nm | 100mW | 5.6*10 | LD cathode, PD anode | -10~40 | ￥260.00 | $40.00 | |
| 850nm | 200mW | 5.6*10 | LD cathode, PD anode | -10~40 | ￥280.00 | $43.08 | |
| 850nm | 200mW | 5.6*10 | LD anode, PD cathode | -10~40 | ￥320.00 | $49.23 | |
| 850nm | 300mW | 5.6*10 | LD cathode, case anode, no PD | -10~40 | ￥320.00 | $49.23 | |
| 850nm | 700mW | 5.6*10 | LD only, no PD,case isolated | -10~40 | ￥450.00 | $69.23 | |
| 850nm | 1000mW | 5.6*10 | LD cathode, case anode, no PD | -10~40 | ￥600.00 | $92.31 | |
| 880nm | 10mW | 5.6*10 | LD anode, PD cathode | -10~40 | ￥150.00 | $23.08 | |
| 905nm | 10mW | 5.6*10 | LD cathode, PD anode | -10~70 | ￥220.00 | $33.85 | |
| 905nm | 10mW | 5.6*10 | LD anode, PD cathode | -10~70 | ￥240.00 | $36.92 | |
| 905nm | 50mW | 5.6*10 | LD cathode, PD anode | -10~70 | ￥240.00 | $36.92 | |
| 905nm | 100mW | 5.6*10 | LD cathode, PD anode | -10~70 | ￥350.00 | $53.85 | |
| 905nm | 200mW | 5.6*10 | LD cathode, PD anode | -10~40 | ￥450.00 | $69.23 | |
| 905nm | 25W | 5.7*5 | Long pin anode, Short pin cathode | -10~40 | ￥100.00 | $15.38 | |
| 905nm | 75W | 5.7*5 | Long pin anode, Short pin cathode | -10~40 | ￥120.00 | $18.46 | |
| 940nm | 250mW | 5.6*10 | LD cathode, case anode, no PD | -10~40 | ￥400.00 | $61.54 | |
| 980nm | 50mW | 5.6*10 | LD cathode, PD anode | -10~40 | ￥25.00 | $3.85 | |
| 980nm | 100mW | 5.6*10 | LD cathode, PD anode | -10~40 | ￥90.00 | $13.85 | |
| 980nm | 200mW | 5.6*10 | LD cathode, case anode, no PD | -10~40 | ￥200.00 | $30.77 | |
| 980nm | 300mW | 5.6*10 | LD cathode, PD anode | -10~40 | ￥400.00 | $61.54 | |
| 980nm | 500mW | 5.6*10 | LD cathode, case anode, no PD | -10~40 | ￥450.00 | $69.23 | |
| 980nm | 1000mW | 9*14 | LD cathode, PD anode | -10~50 | ￥800.00 | $123.08 | |
| 1064nm | 50mW | 5.6*10 | LD cathode, PD anode | -10~40 | ￥800.00 | $123.08 | |
| 1064nm | 200mW | 9*14 | LD cathode, case anode, no PD | -10~40 | ￥1,600.00 | $246.15 |
Notice: Operation outside these conditions may damage the device. Operation at maximum ratings may influence lifetime.

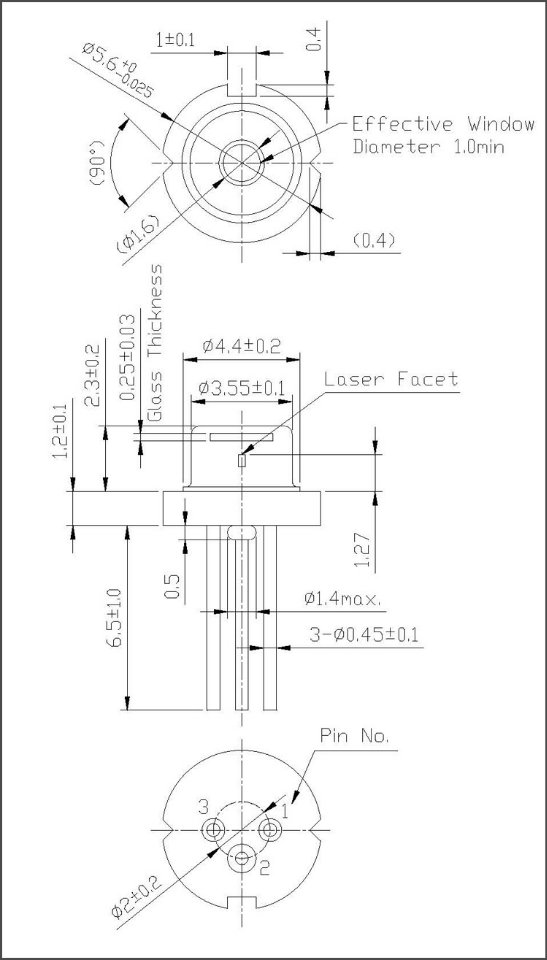

TO18 package:
