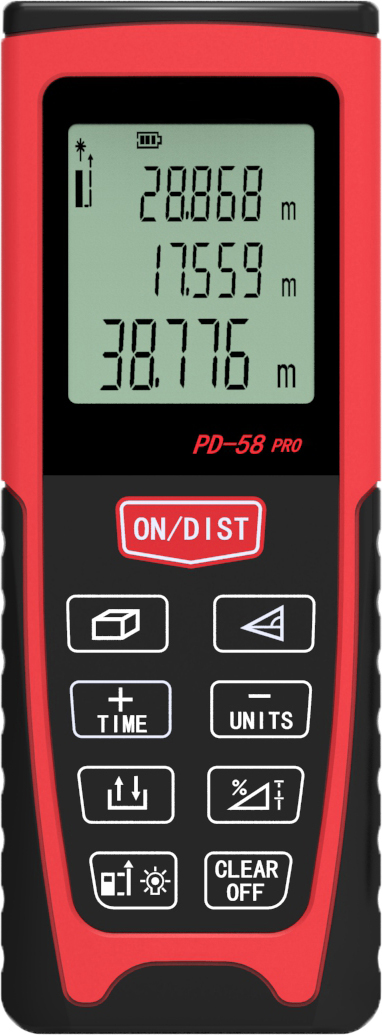

Model number: FU-PD-58N
Technical data
Range (use target plate for longer) |
0.1m to 80m( |
Measuring accuracy up to 80m(in the room) |
Typ. ±2mm** |
Smallest unit displayed |
1 mm |
Laser class |
Ⅱ |
Laser type |
620-690 nm, <1 mW |
Automatic switch off |
3 minutes of inactivity |
Display illumination |
√ |
Minimum/ Maximum measurement, Continuous measurement |
√ |
Addition/Subtraction |
√ |
Pythagoras measurement |
√ |
Area / Volume calculation |
√ |
Timer |
√ |
Staking out function |
√ |
Historical storage |
√(99) |
Measure range of tilt sensor* |
360° |
Accuracy of tilt sensor * |
±0.3° *** |
Battery life, Type AAA,2×1.5V |
up to 5000 measurements |
Dimension |
122×46×26 mm |
Weight |
105g |
Storage Temperature range |
-25℃ to +70℃(-13℉ to +158℉) |
** Maximum deviation occurs under unfavorable conditions such as bright sunlight or when measuring to poorly reflecting or very
rough surfaces. For distances over 80m – without using a target plate – the maximum deviation may increase to a maximum of ±10mm.
*** This is the typical value. For the limiting conditions (e.g. limiting temperature), the deviation increases a little.
Function:
Selectable datum side
Display illumination
Buzzer
Single/continuous measurement
Area
Pythagoras
Volume
Plus/minus calculation
Measuring extended edge

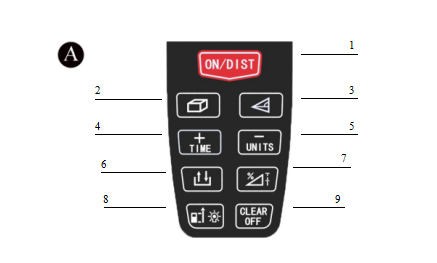

1 ON / Measuring button
2 Area / Volume button
3 Pythagoras button
4 Plus (+) / Timer button
5 Minus (-) / Units button
6 Storage button
7 Angle / stake out function button
8 Reference / Illumination button
9 Clear / off button
FU-Lasers for you!
