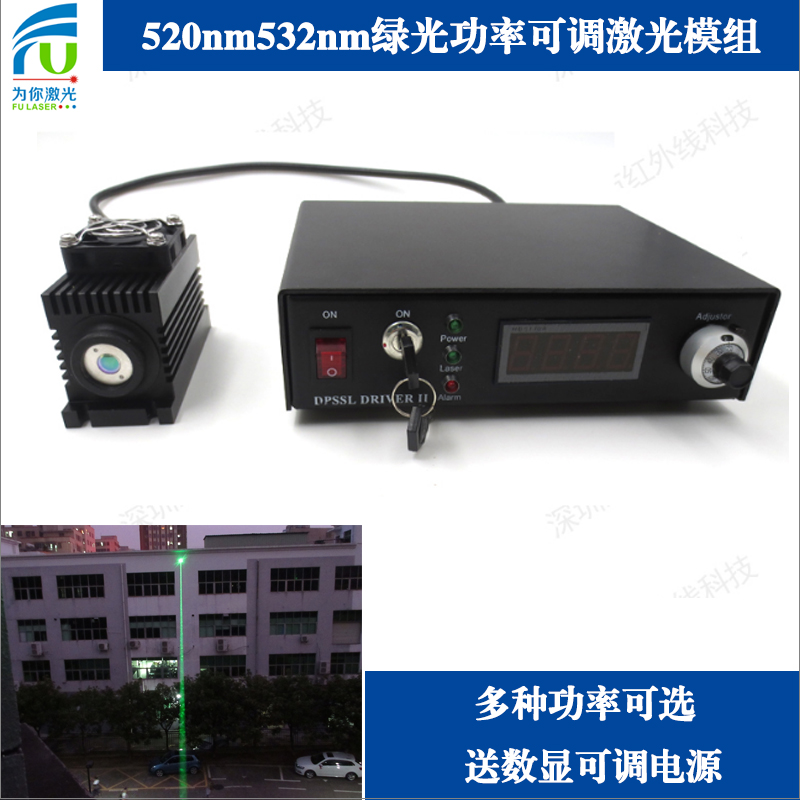

Product Title:FU520AD1000-F100/FU520AD2000-F100 520nm 1000mW 2000mW green laser diode module CW/TTL 30KHz <3% power stability TEM00 TEC big dimension

Note: Different model have different wavelength and output power

Model FU520AD1000-F100
FU520AD2000-F100
Wavelength 520±5nm
Spatial Mode Near TEM00
Output Power 1000mW/2000mW
Operation Mode CW or Modulation
Beam Height 29mm
Beam Size 4.5*4mm
Beam Divergence(full angle) 1.2*0.5mrad
Power Stability <3% per 4 hours
Temperature Stabilizing TEC
Warm Up Time <1 minute
MTTF 10,000 hours
Laser Head Dimension 114*44*65mm3 L*W*H
Power Supply 179*148*56mm3 L*W*H 85-265VAC 50/60Hz input
Modulation 0~30KHz Analog or TTL







FU520AD1000-F100/FU520AD2000-F100 520nm 1000mW 2000mW green laser diode module CW/TTL 30KHz <3% power stability TEM00 TEC big dimension
