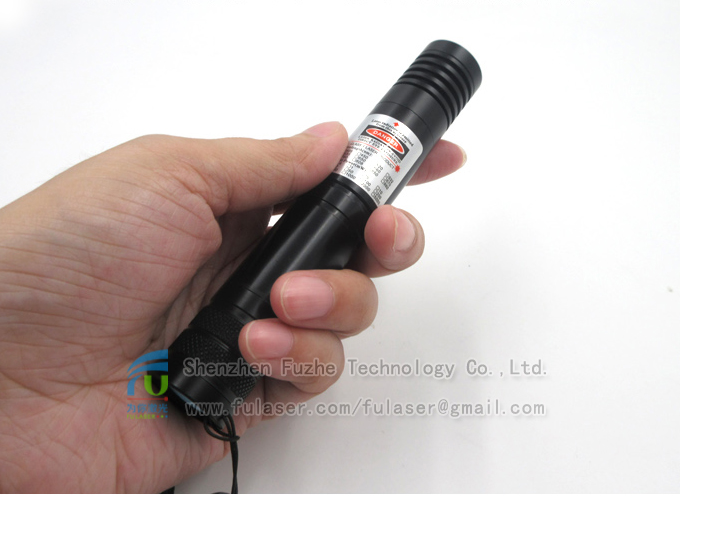

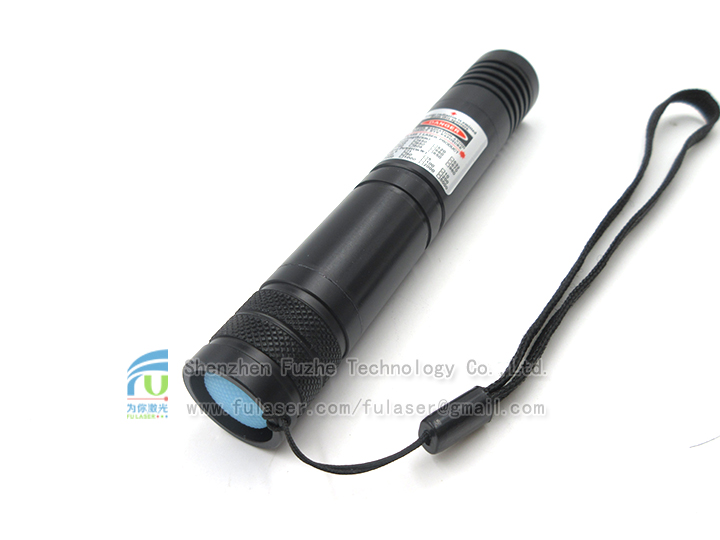

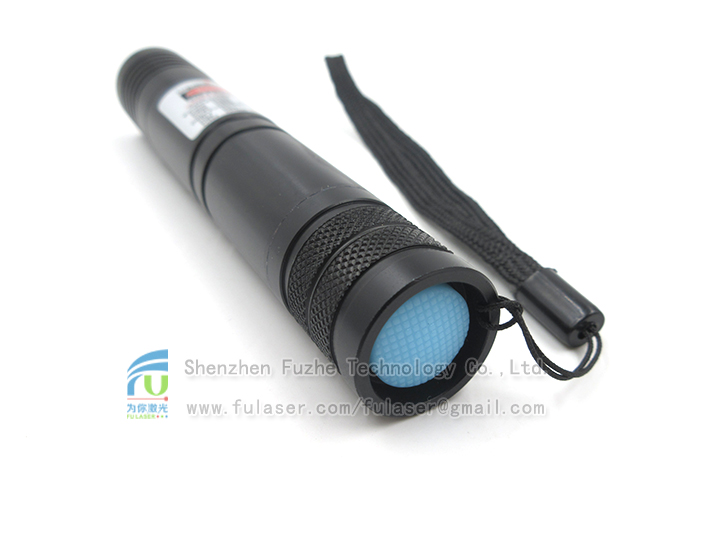

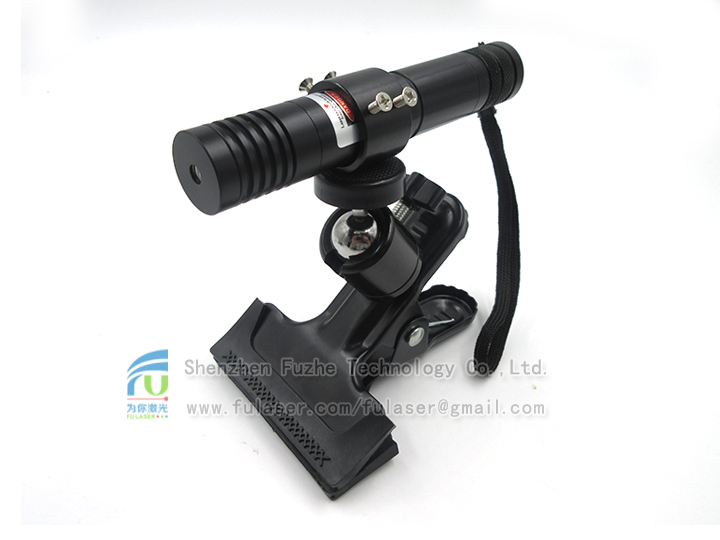

Product Title:FU520AC5-BXS22 510-530nm 3mW portable green cross hair laser diode module adjustable focus with button ON/OFF, 14500 rechargeable battery

More customized diode laser modules with different wavelengths and power options are available additionally to the standard types.
Brand: FU
Model: FU520AC5-BXS22

Cross Line specification:
Wavelength(nM): 520±10
Output Power (mW): <3

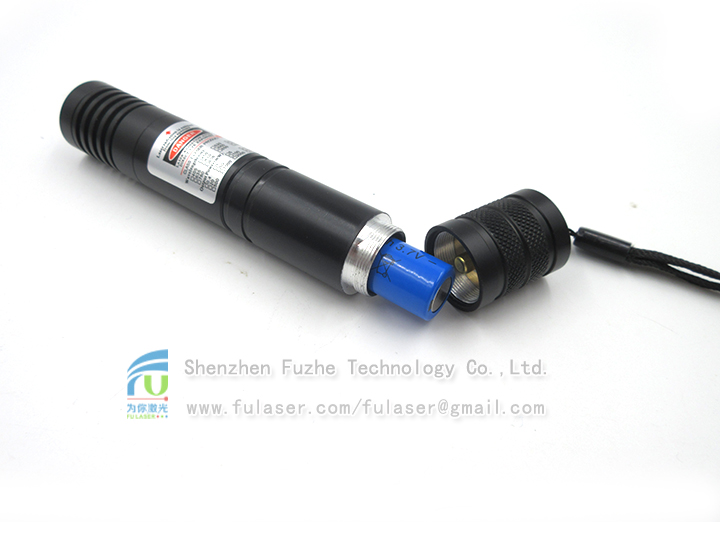

Operaing Voltage(VDC): 3.7   (#14500 rechargeable battery)
Projection Type : Cross hair line
Beam focus: Cross Line thickness adjustable(To thick or thin)
Projection Fan Angle(°, full angle) : 10~110
Divergence (mrad, full angle): <2
Transverse Mode : Near TEM00
Operating Temperature Range (°C): -10 to +40
Storage Temperature Range (°C): -20 to +50
Total Power Consumption (W) 1
Cooling Method : Passive air
Standard Warranty (months): 12

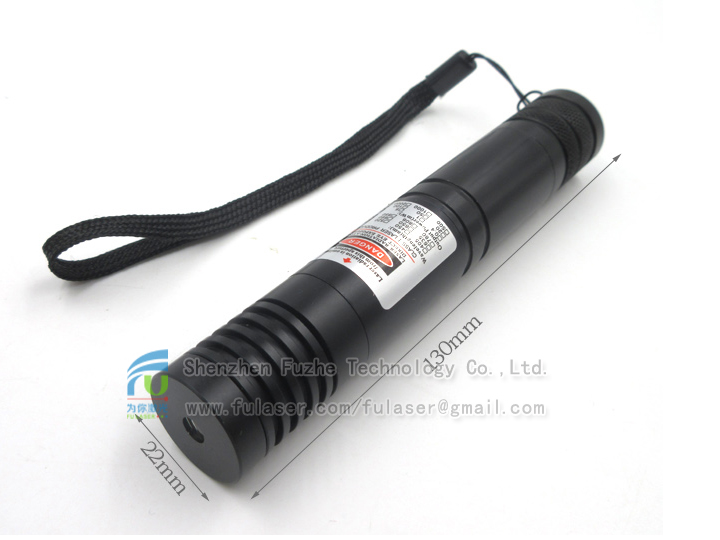

Laser Head Dimensions (mm): 130(L) x 22(D)
Button: Always ON or Always OFF.
------------------

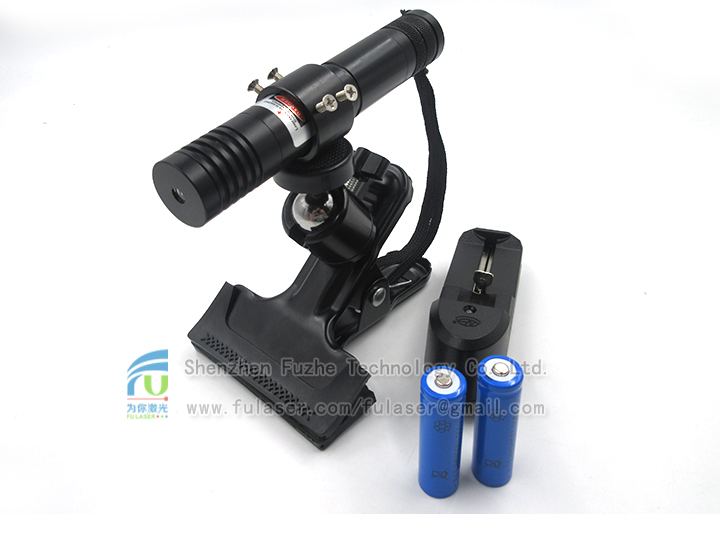

Package Includes:
Laser module -1 piece

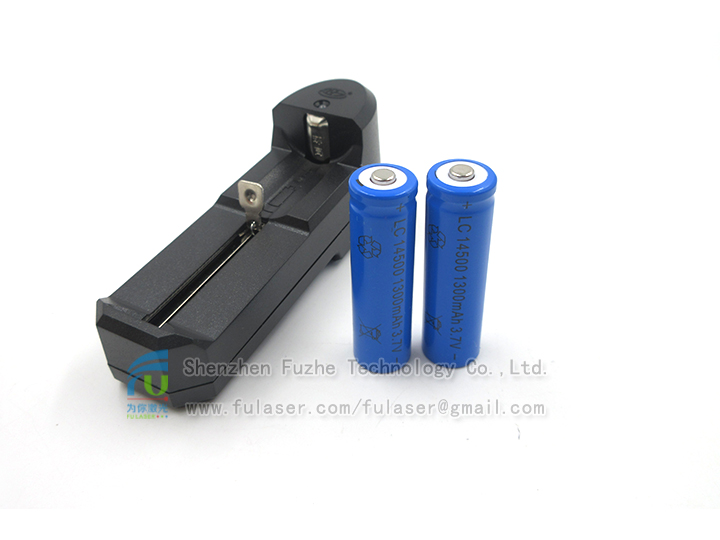

#14500 rechargeable battery- 2 piece
Tripod(Bracket/Mount)- 1 piece




Beam mode:





FU520AC5-BXS22 510-530nm 3mW portable green cross hair laser  diode module adjustable focus with button ON/OFF, 14500 rechargeable battery

FU520AC5-BXS22,510-530nm,laser,green cross line laser,green laser cross hair line,cross liner laser,cross line laser, cross lazer line, cross hair lazer, cross line generator laser, cross hair generator lazer,+ laser, + laser module, adjustable laser, straight line laser, green laser line cross, portable laser,Handheld laser,plus laser, plus laser module, plus laser diode module,cross laser,cross laser module
