Product Title:Neutral grey colored glasses ZAB00 ZAB02 ZAB2 ZAB5 ZAB10 ZAB25 ZAB30 ZAB50 ZAB65 ZAB70

Neutral grey colored glasses

 Neutral grey colored glasses Characteristic

Type Thickness
(mm)
A[2856k] D65 Chemical Stability ND α×10-7
(/℃)
Tg
(℃)
Ts
(℃)
S
x y Y x y Y DA DW
ZAB00 0.5             5 3 1.527 65 469 582 2.46
ZAB02 1             5 3 1.514 65 469 582 2.41
ZAB2 2 0.447 0.396 1.1 0.306 0.315   5 3 1.509 65 469 582 2.43
ZAB5 2             5 4 1.505 65 469 582 2.42
ZAB10 2 0.434 0.402 9.0 0.297 0.314   1 3 1.526 65 469 582 2.52
ZAB25 2 0.442 0.408 25.7 0.308 0.327 25.4 5 3 1.502 65 469 582 2.41
ZAB30 2             1 3 1.523 65 469 582 2.52
ZAB50 2 0.444 0.408 45.7 0.310 0.329 45.0 5 3 1.502 65 469 582 2.41
ZAB65 2             1 3 1.521 65 469 582 2.52
ZAB70 2 0.499 0.410 70.2 0.316 0.385 68.7 5 3 1.502 65 469 582 2.41

Neutral grey colored glasses Technical Indexes and Class Of Bubble、Stripe、Stress

Type Thickness
(mm)
V(Mired) QZ
(%)
Bubble Stripe Stress
Standard Tolerance
ZAB00 0.5 2.0 1.0~4.0 ≤4.0 C-B 4 3
ZAB02 1 1.5 0.5~3.0 ≤3.0 C-B 4 3
ZAB2 2 2.0 1.0~3.0 ≤3.0 C-B 4 3
ZAB5 2 5.0 1.0~9.0 ≤5.0 C-B 4 3
ZAB10 2 10.0 6.0~15.0 ≤5.0 C-B 4 3
ZAB25 2 25 18.0~32.0 ≤6.0 C-B 4 3
ZAB30 2 30 23.0~37.0 ≤10.0 C-B 4 3
ZAB50 2 50 41.0~59.0 ≤8.0 C-B 3C 3
ZAB65 2 65 58.0~72.0 ≤6.0 C-B 3C 3
ZAB70 2 70 63.0~77.0 ≤7.0 C-B 3C 3

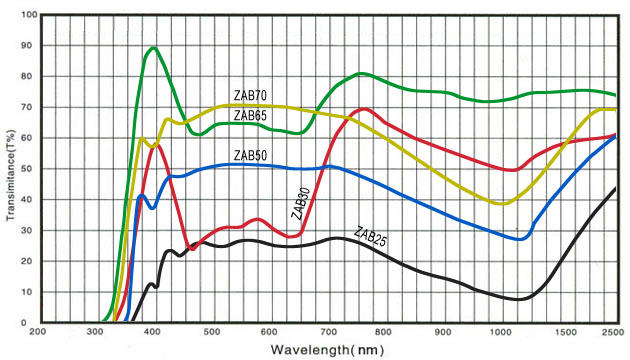

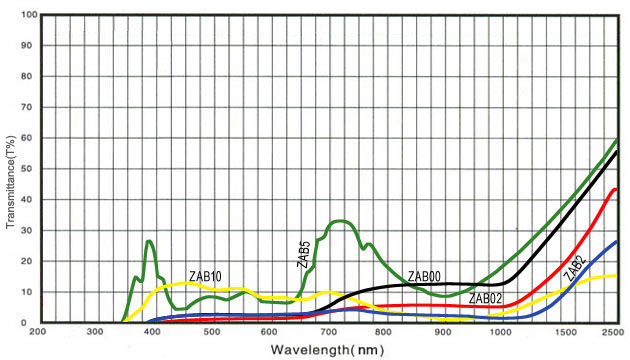

Neutral grey colored glasses's Spectra
