FU660WG100-GD1620X20 640~665nm 650nm 660nm 100mW Diffractive optical elements(DOE) 20*20=400 Square mesh Laser Grid Matrix with adjustable focus

Product Title：FU660WG100-GD1620X20 640~665nm 650nm 660nm 100mW Diffractive optical elements(DOE) 20*20=400 Square mesh Laser Grid Matrix with adjustable focus

Brand: FU(For You)

Model

:

FU660WG100-GD1620X20

Wavelength: 660nm in picture (405/450/520/532/635/650/670/685nm IR for choose)

Output power: <100mW

Operating voltage: DC2.8~3.2V or 3.5~25V

Dimension: φ16*70mm

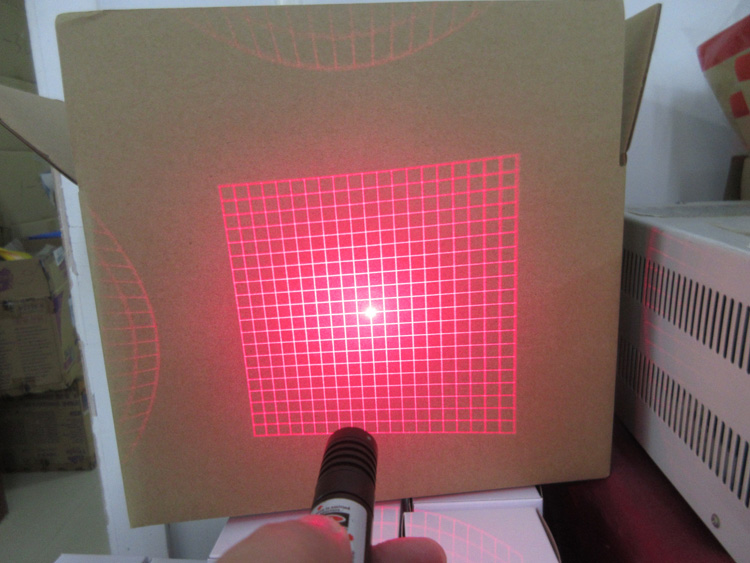

Beam mode: 20*20=400 grid(adjustable focus)

Lens: Plastics lens

Operating temperature: -10~40°C
Storage temperature: -40-80°C

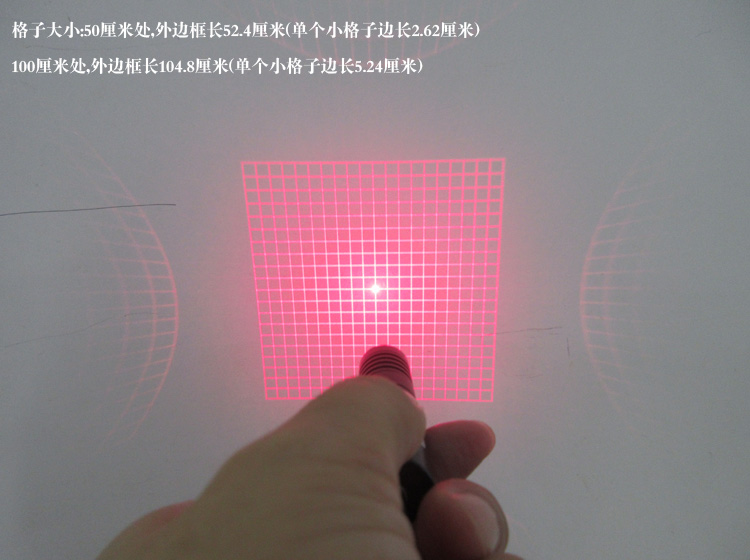

Beam size: @1000mm, length: 1048 mm, width: 1048 mm, each small grid: 104.8*104.8 mm (proportional scaling)
