Product Title:FU650YZD100-GD16-7.68°-095,FU650YZD100-GD16-80.1°-213,FU650YZD100-GD16-95.5°-093 center point middle dot in line laser diode module lazer light lamp
More customized diode laser modules with different wavelengths and power options are available additionally to the standard types.
Brand: FU(For You)

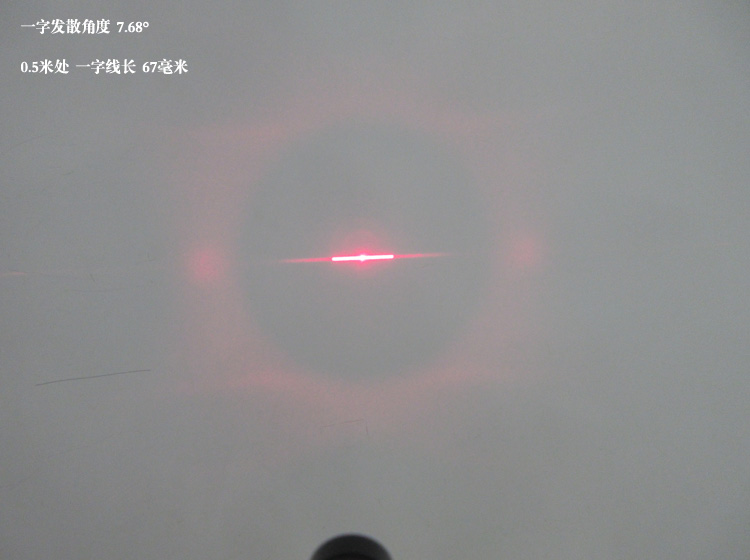

Model: FU650YZD100-GD16-7.68°-095

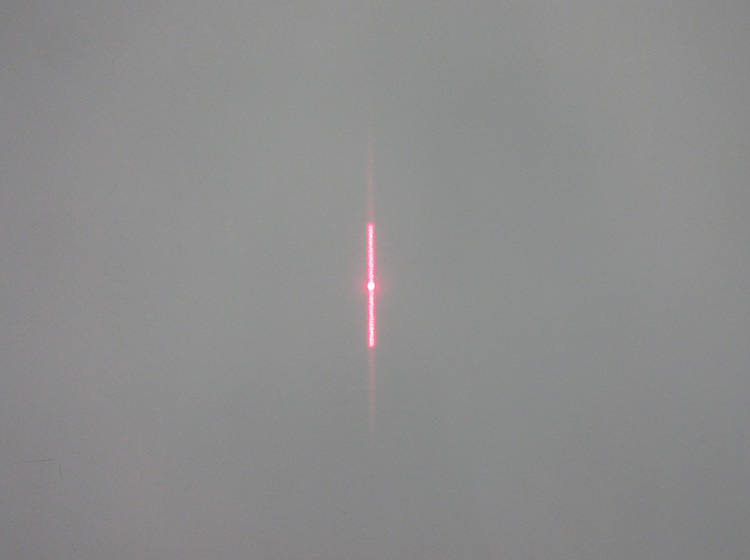

Beam size: line about 67mm at 50cm, about 7.68 degree
----------------------------------------------------

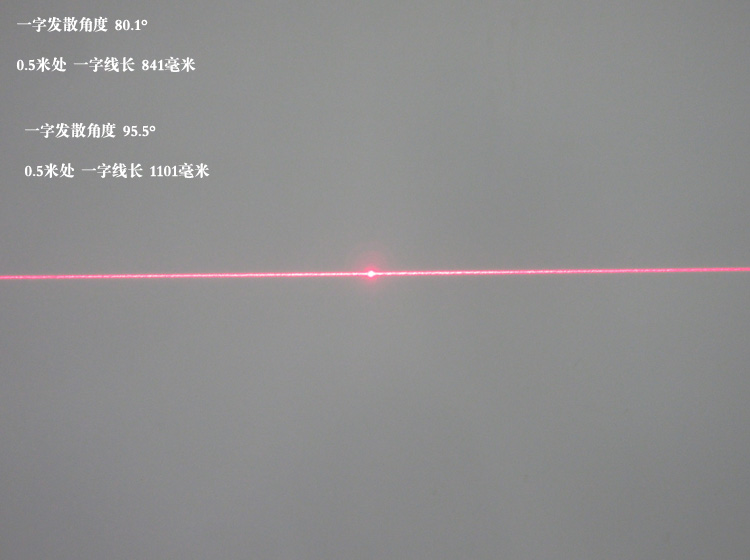

Model: FU650YZD100-GD16-80.1°-213

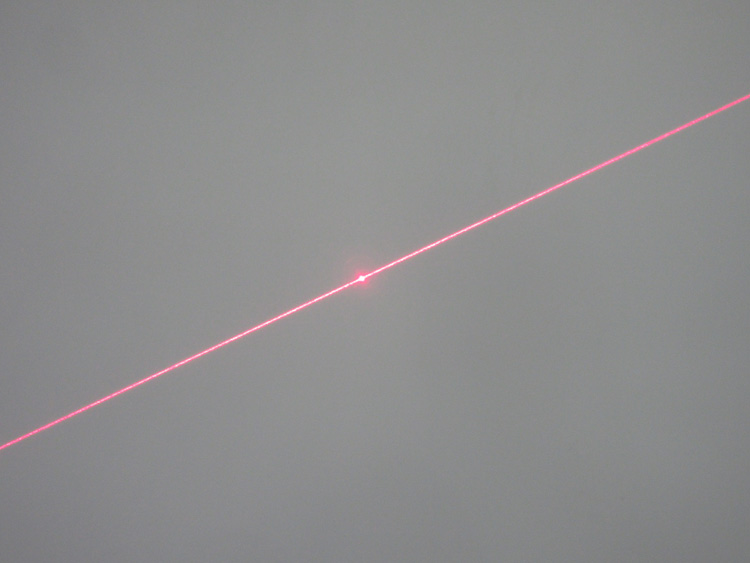

Beam size: line about 841mm at 50cm, about 80.1 degree
----------------------------------------------------
Model: FU650YZD100-GD16-95.5°-093
Beam size: line about 1101mm at 50cm, about 95.5 degree
----------------------------------------------------
Different model but in same parameter:
Wavelength: 650nm
Output Power (mW): <100
Operating Voltage(VDC): 3-5
Beam focus: Adjustable
Transverse Mode : Near TEM00
Operating Temperature Range (°C): -10 to +40
Storage Temperature Range (°C): -20 to +50
Total Power Consumption (W) 1
Cooling Method : Passive air+Extra heat sink
Cable length(cm): <100
Standard Warranty (months): 6
Laser Head Dimensions (mm): 70(L) x 16(D)

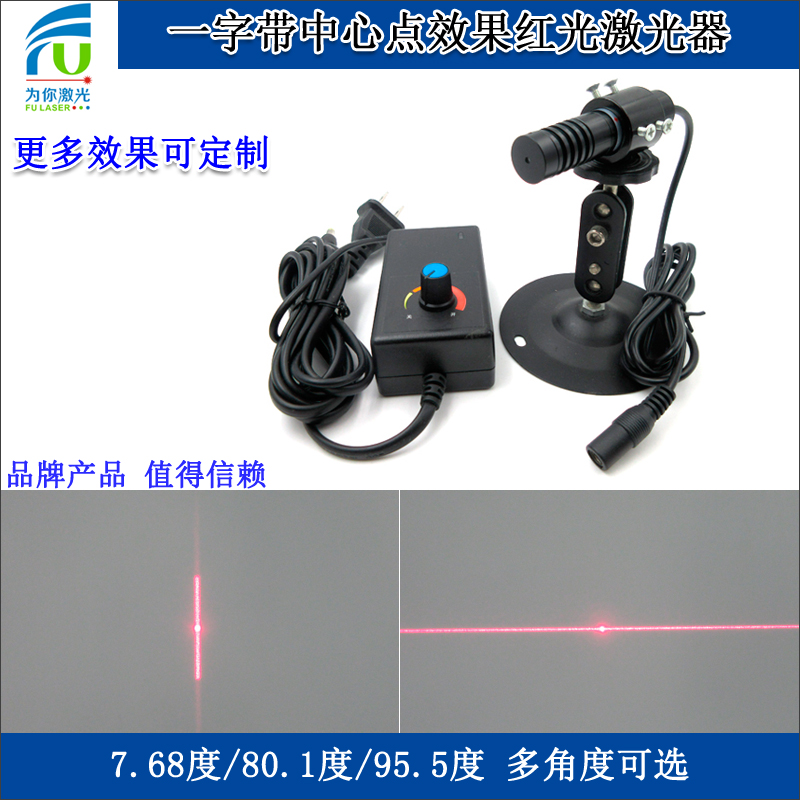

Package Includes:
Laser module -1 piece
Power supply 1-3VDC- 1 piece
Tripod(Bracket/Mount)- 1 piece
