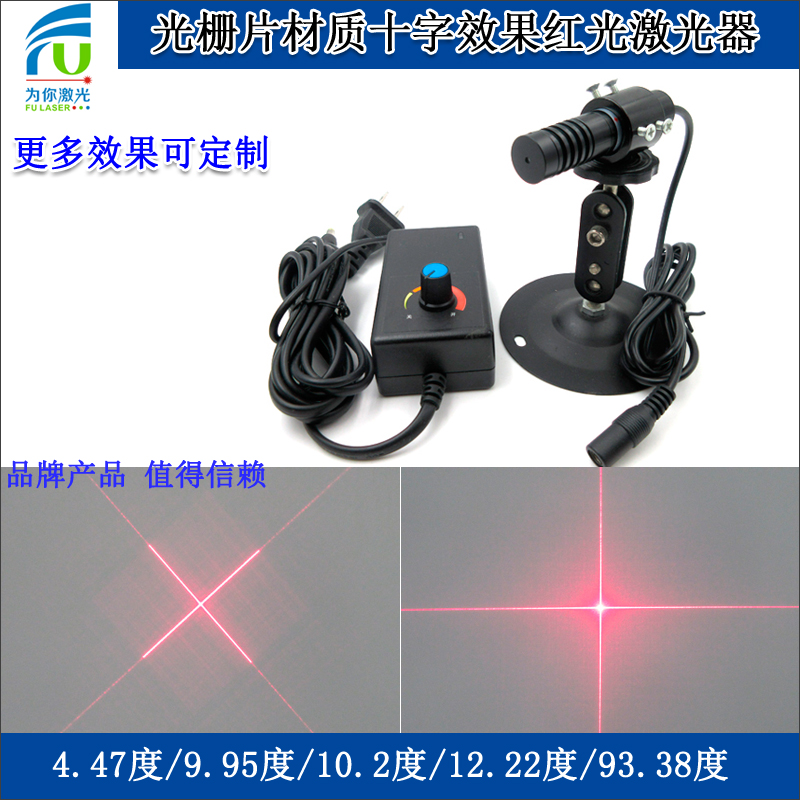

Product Title：FU650SZ100-GD16-4.47°-096,FU650SZ100-GD16-9.95°-092,FU650SZ100-GD16-10.2°-200,FU650SZ100-GD16-12.22°-364,FU650SZ100-GD16-93.38°-363 cross hair line laser diode module light lamp
More customized diode laser modules with different wavelengths and power options are available additionally to the standard types.
Brand: FU(For You)
Model: FU650SZ100-GD16-4.47°-096
Beam size: cross about 39mm*39mm at 50cm, about 4.47 degree
----------------------------------------------------
Model: FU650SZ100-GD16-9.95°-092
Beam size: cross about 87mm*87mm at 50cm, about 9.95 degree
----------------------------------------------------
Model: FU650SZ100-GD16-10.2°-200
Beam size: cross about 90mm*90mm at 50cm, about 10.2 degree
----------------------------------------------------
Model: FU650SZ100-GD16-12.22°-364
Beam size: cross about 107mm*107mm at 50cm, about 12.22 degree
----------------------------------------------------
Model: FU650SZ100-GD16-93.38°-363
Beam size: cross about 1061mm*1061mm at 50cm, about 93.38 degree
----------------------------------------------------
Different model but in same parameter:
Wavelength: 650nm
Output Power (mW): <100
Operating Voltage(VDC): 3-5
Beam focus: Adjustable
Transverse Mode : Near TEM00
Operating Temperature Range (°C): -10 to +40
Storage Temperature Range (°C): -20 to +50
Total Power Consumption (W) 1
Cooling Method : Passive air+Extra heat sink
Cable length(cm): <100
Standard Warranty (months): 6
Laser Head Dimensions (mm): 70(L) x 16(D)
Package Includes:
Laser module -1 piece
Power supply 1-3VDC- 1 piece
Tripod(Bracket/Mount)- 1 piece
